AN-SG2-006 - Defining the Ladder Logic Tool Bar

Defining the Ladder Logic Tool Bar for the SG2 Client Software

AN-SG2-006

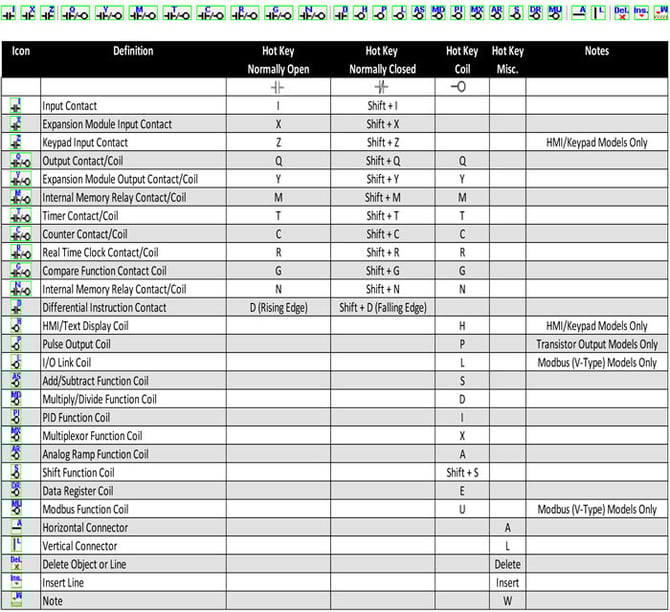

This App Note identifies the icons on the ladder logic tool bar in the SG2 Client software. The table identifies the icons and hot keys for the same tool bar. For this example, we will be using the SG2 Client software version 3.4.



Ladder Logic Tool Bar

Ladder Logic
